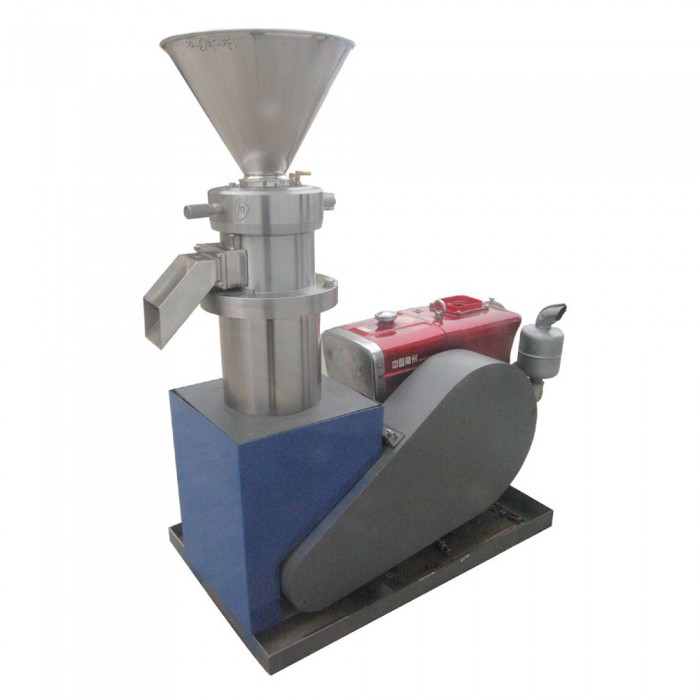

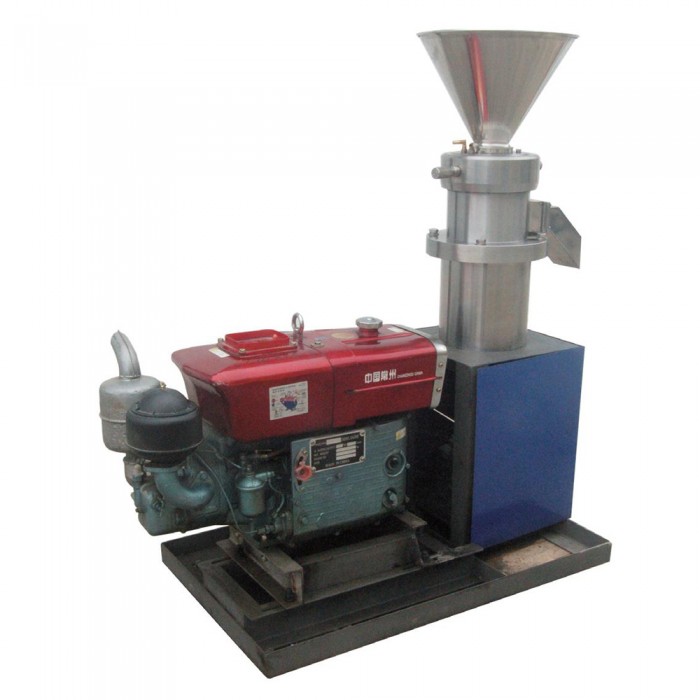

DIESEL DRIVE COLLOID MILL

一、Summary

Colloid mill are kind of machines that finely process fluid materials. It combines various mechanical properties such as homogenizers, ball mills, three roll machines, shearing machines, mixers, etc., and has superior effects such as ultrafine grinding, dispersion emulsification, homogenization, and mixing. After processing, the material has a particle size of 2-50 microns and a homogeneity of over 90%, making it an ideal equipment for ultrafine particle processing.

This machine is suitable for ultrafine grinding of wet materials in the pharmaceutical, food, chemical, and other industries. It can crush, emulsify, homogenize, and mix various semi wet and emulsion substances, and its main technical indicators have reached the advanced level of similar foreign products.

二、Application scope

 1.Food industry: aloe, pollen broken walls, pineapple, sesame, fruit tea, ice cream, moon cake filling, cream, jam, fruit juice, soybeans, soy sauce, bean paste, peanut milk, protein milk, soy milk, dairy products, malt milk, essence, various drinks, chicken bone paste, pig skin and other animal skins.

2.Chemical industry: paints, pigments, dyes, coatings, lubricants, greases, diesel, petroleum catalysts, emulsified asphalt, adhesives, detergents, plastics, fiberglass, leather, etc.

3.Daily chemical products: toothpaste, detergent, shampoo, shoe polish, cosmetics, shower gel, soap, shampoo, etc.

4.Pharmaceutical industry: various syrups, nutrient solutions, traditional Chinese patent medicines and simple preparations, creams, biological products, cod liver oil, pollen, royal jelly, vaccines, various ointments, various oral liquids, injections, intravenous drops, trypsin preparations, emulsions, etc.

5.Construction industry: various coatings, including interior and exterior wall coatings, anti-corrosion and waterproof coatings, cold porcelain coatings, colorful coatings, ceramic glazes, etc.

6.Other industries: plastic industry, textile industry, paper industry, biochemical industry, environmental protection and energy conservation, coal flotation agent, nanomaterials, major universities, research institutions, etc.

三、Working principle

1.This machine utilizes the relative motion of fixed stator and rotating rotors with different geometric shapes under high-speed rotation. When the processed material passes through the adjustable gap between the fixed stator and rotating rotors under the action of its own weight, air pressure, and centrifugal force, it is effectively crushed, dispersed, emulsified, and mixed by strong composite forces such as shear force, friction force, impact force, and high-frequency vibration, thus obtaining the ideal product.

2.The crushing chamber is equipped with three grinding zones, with the first stage being the coarse grinding zone, the second stage being the fine grinding zone, and the third stage being the ultrafine grinding zone. By adjusting the gap between the stator and rotor, the desired ultrafine grinding effect can be effectively achieved (which can also be processed cyclically.

四、Structural characteristics

1.The main components are made of high-quality stainless steel material, which is corrosion-resistant and non-toxic.

2.The main working components of the stator and rotor are processed using special machining and heat treatment techniques, with high machining accuracy and long service life.

3.The stator and rotor can be made of different materials, equipped with different structures and tooth profiles such as grinding and shearing, and users can choose according to their needs, with wide applicability.

4.The machining gap can be finely adjusted by adjusting the ring, which is easy to control and ensures the machining quality of the product.

5.The main body seat and adjustment ring are equipped with limiting and locking devices to ensure the stability of the machining gap.

6.Equipped with a cooling system to ensure the properties of the processed materials.

7.The product design includes structures such as ordinary feeding and discharging, tubular feeding and discharging, and circular processing to maximize the satisfaction of users' requirements.

8.Users can choose between regular motors or explosion-proof motors according to their needs.

9.The whole machine is designed with multiple forms of outer packaging for users to choose from.

10.The spindle and motor are designed separately, and users can choose the appropriate speed according to their needs.

11.The sealing forms include ordinary sealing sleeve sealing and mechanical sealing, which users can choose according to their needs.

Colloid mill have the advantages of reasonable structure, stable performance, simple operation, and convenient maintenance.

五、Main performance parameters

Note: The normal installation speed is the diesel engine speed. If the user has special needs, they should be specified in the contract.
